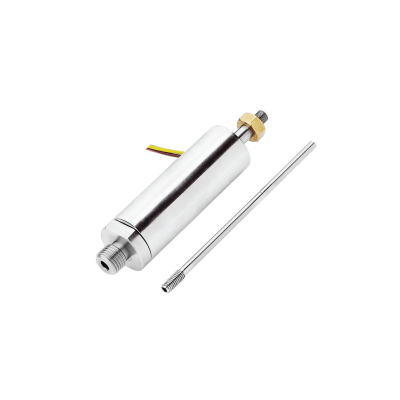

EPI20-15C Spool Position Sensor
EPI20-15C閥芯位置傳感器采用差動變壓的測量原理，具有精度高、線性好、響應速度快等特點。獨特的密封方式，使得傳感器最高可以承受35Mpa高壓。廣泛應用于液壓控制領域，是液壓控制系統(tǒng)必不可少的感應器件。
Introduction:
EPI20-15C series, which is based on the principle of LVDT, is highly precise,sensitive. Special sealing pefromed in EPI20-15C make it operate up to 5076psig. It has been widely used in hydraulic control, meanwhile become a necessary sensing element of the hydraulic control system.
Features:
- Pressure resistant up to 350bar (5076psig)
- 2-wire output of 4-20mA, 3-wire voltage signal
- 4-wire PNP/NPN
- Operating Voltage9 - 28V DC
- Power Consumption＜2W
- Mesurements ranging from 2.5mm to 35mm.
- Non-linearity＜1%
- Compact design
Applications:
- Proportional valve
- Servo Valve Displacement Sensing
- Directional control valves
- Servo lever
Specification:

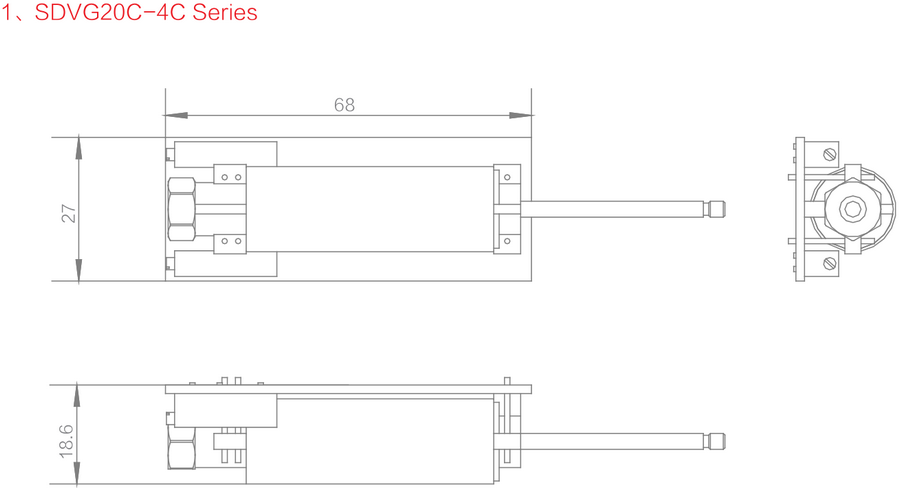

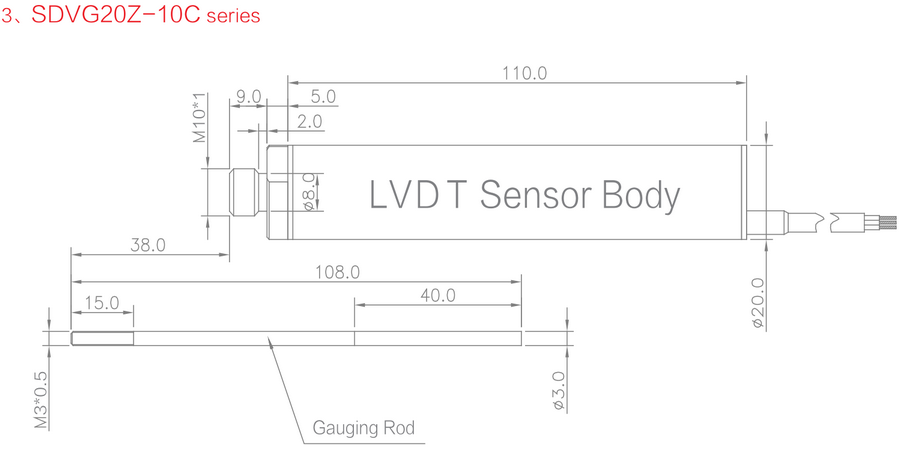

Dimension:

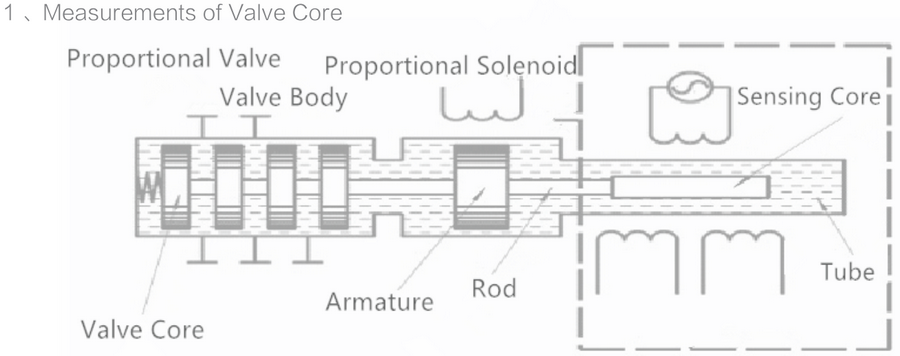

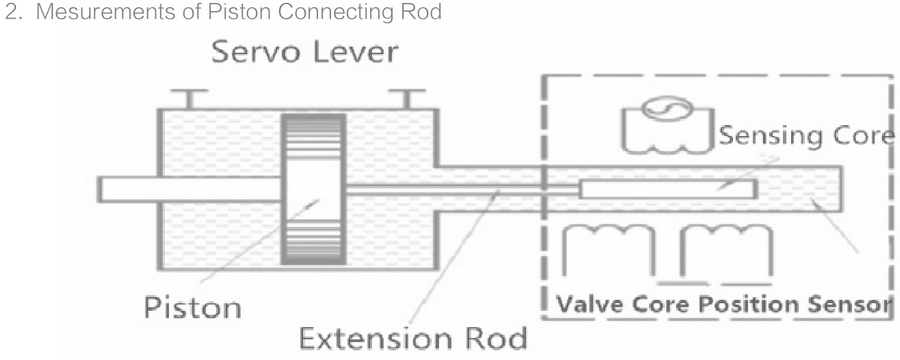

Application Diagram:
Caution:
1. The output increases when the connceting rod moves axially.
